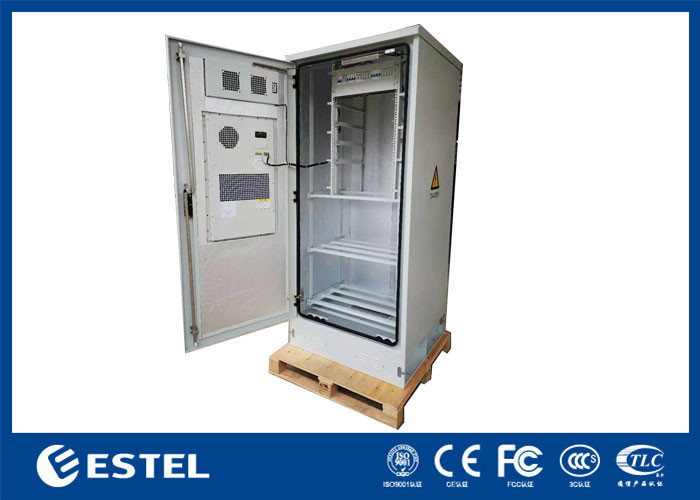

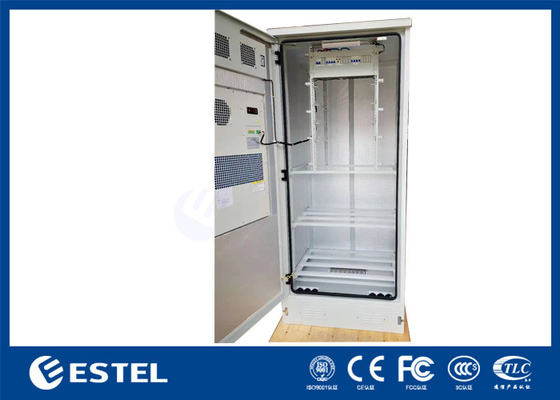

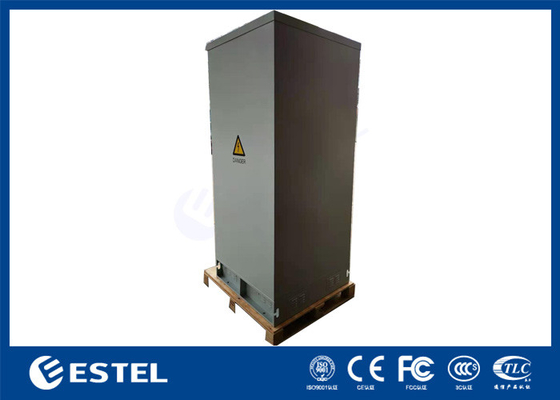

IP55 Außen-Telekommunikationsschrank mit 19-Zoll-Rack-Stromverteilungseinheit und Batterieschrank
Produktdetails:
| Herkunftsort: | China |
| Markenname: | ESTEL |
| Zertifizierung: | ISO9001, CE, RoHs |
| Modellnummer: | ET9090210C-20U |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Satz |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Holzgehäuse mit Paletten |
| Lieferzeit: | 4-6 Wochen |
| Zahlungsbedingungen: | Western Union, T/T |
| Versorgungsmaterial-Fähigkeit: | 4000 PCS/Month |
|
Detailinformationen |
|||
| Material: | Galvanisierte Stahl-, einzelne Wand mit Wärmedämmung | Kühlung: | Klimaanlage und Fans |
|---|---|---|---|
| Merkmal: | mit Stromverteilungseinheit | Teile: | LED-Leuchten mit Schalter |
| Eintrittsschutz: | IP55 | Tür: | 1 Vordertür |
| Hervorheben: | 19 Zoll Telekommunikationsschrank im Freien,Batterie-Regal Außen-Telekommunikationsschrank,IP55 Außen-Telekommunikationsschrank |
||
Produkt-Beschreibung
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Features:
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
IP55 Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
PDU Principle Diagram
Cabinet Diagram:
